Intercom Handset Finder Tool

In the data sheets (requires a PDF reader) you will find more high resolution pictures (that you can zoom into), typical wiring diagrams and connection information, to help you find the right replacement intercom handset. Your system will always work best with the manufacturers direct replacement. Once you have found the right one we will either sell it to you via the online shop or we can special order that in for you if the product is still available.

1) Look through the pictures and locate your handset (we have taken pictures of the insides as well on most examples, just in case it's smashed to bits.

2) Check that the terminal markings are the same as those listed (some models look the same but have 2 and 5 wire versions) view the data sheet if you are still unsure. NOTE : Some housing association systems use converted standard handsets (ie Urmet, BPT, Comelit etc), so check the internal circuit board looks the same, or else it will not work. If you are still in doubt, e-mail us a picture inside and out and we will try to identify it.

3) Click on the 'CHECK AVAILABILITY' button where you will either be re-directed to our on-line shop to purchase or drop us details so we can order the handset in for you as a special order.

Special Order
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

ACET 701 ORIGINAL (5 Wire)

Old Style Acet 701 Door Entry Handset Terminals











Info
1&2 Volt Free Switch Replaced by the new 701
3 Speech In (Speaker) See Below
4 Speech Out (Mic)
5 Call 2 x Handsets off 1 call
6 Common line only
7 Lock
DISCONTINUED

ACET 701 (5 WIRE)

Acet 701(5 Wire) Door Entry intercom system handset Terminals











Info
1&2 Volt Free Switch 2 and 5 wire versions
3 Speech In (Speaker)
4 Speech Out (Mic) No diodes
5 Call For Use With 21321 or
6 Common 21322 Amplifiers
7 Lock
2 x Handsets off 1 call
line only
DISCONTINUED
USE 22500
CHECK AVAILABILITY

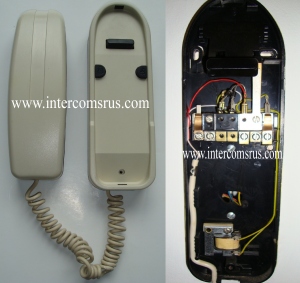

ACET 702 ORIGINAL (2 WIRE)

Old Style Acet 702 Door Entry Handset Terminals











Info
1&2 Volt Free Switch 2 and 5 wire versions
3
5 Common
6 Input from panel Replaced by the new 702
7 See Below
2 x Handsets off 1 call
line only
CHECK AVAILABILITY

ACET 702 (2 WIRE)

acet 702 (2 wire) door entry intercom system handset Terminals











Info
1&2 Volt Free Switch 2 and 5 wire versions
3
5 Common
6 Input from panel Has Diodes
7
For Use With 21231 or
21227 Amplifiers
2 x Handsets off 1 call
line only
DISCONTINUED
USE 22220
CHECK AVAILABILITY

ACET 22500 (5 WIRE)

acet 22500 (5 wire)door entry intercom system handset Terminals











Info
1&2 Volt Free Switch 2 and 5 wire versions
3 Speech In (Speaker)
4 Speech Out (Mic)
5 Call No diodes & has a 4 Term
6 Common
7 Lock For Use With 21321 or
21322 Amplifiers
2 x Handsets off 1 call
line only
CHECK AVAILABILITY

ACET 22220 (2 Wire)

acet 22220 (2 wire) door entry intercom system handset Terminals











Info
1&2 Volt Free Switch 2 and 5 wire versions
3 Local buzzer
5 Common Has Diodes, Term 4
6 Input from panel is missing on some models
7
For Use With 21231 or
21227 Amplifiers
2 x Handsets off 1 call
line only
CHECK AVAILABILITY

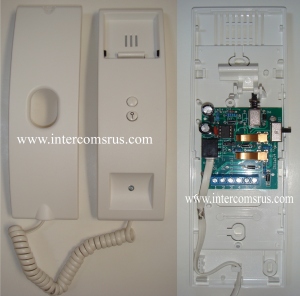

ACET 22220 (2 Wire) NEW VERSION 2011

Acet 22220 Door Entry Handset 2011 Model Terminals











Info
1&2 Volt Free Switch 2 and 5 wire versions
3 Local buzzer
New 2011 Version
5 Common AC Buzzer Replaced
6 Input from panel With Electronics
7
Wiring as before
For Use With 21231 or
21227 Amplifiers
2 x Handsets off 1 call
line only
CHECK AVAILABILITY

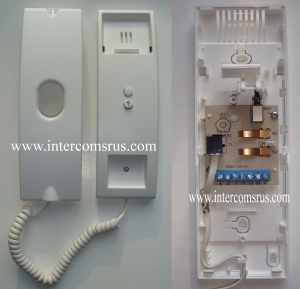

ACET 22510 (5 Wire Ellisse Kit Handset)

Acet 22510 door entry handset Terminals











Info
1&2 Volt Free Switch Note : AC Buzzer
3 Speech In (Speaker) Missing
4 Speech Out (Mic)
5 Call Use With 5 Wire Ellisse
6 Common Kit and 21323 amp
7 Lock
2 x Handsets off 1 call
line only
CHECK AVAILABILITY

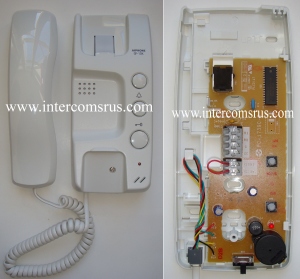

AIPHONE GF-1DK

Aiphone GF-1DK audio door entry handset Terminals











Info
R1 Bus GF-1DK replaces GF-1D
R2 Bus which is no longer
C Local Bell available
CE Local Bell
Special Order

AIPHONE VC-K

Aiphone VCK audio door entry handset Terminals











Info
1 Speech Out (Mic)
2 Speech In (Speaker)
3 Ground
4 Lock
B Call
Special Order

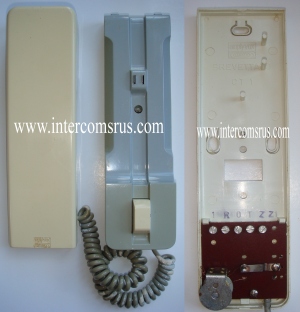

AMPLYVOX

Amplyvox audio door entry handset Terminals











Info
I Call Replace with a
R Speech Out (Mic) Universal Handset
O Common
T Speech In (Speaker)
Z Lock
E
COMPATIBLE UNIT DISCONTINUED

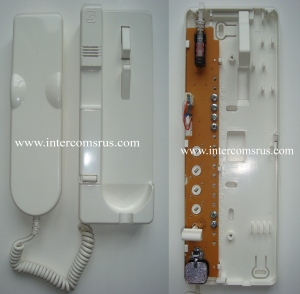

AMPLYVOX Symbol 2215

amplyvox symbol door entry system handset Terminals











Info
I Call Replace with a
R Speech Out (Mic) Universal Handset
O Common
T Speech In (Speaker)
Z Lock
E
COMPATIBLE UNIT DISCONTINUED

AST Sentinel 4

AST sentinel 4 in out Terminals











Info
0V Power
12V Power
U Data Up
D Data Down
DOI Door Open Ind
STB Strobe
12V Power
CHECK AVAILABILITY

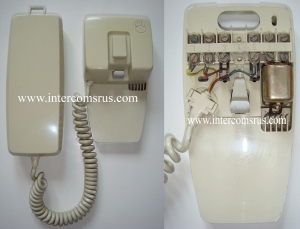

ATEA 702

Atea 702 door entry system handset Terminals











Info
1 Speech In (speaker) Replace with a
2 Speech Out (Mic) Universal handset
3 Lock and set to AC Call
5 Common
7 Call (Buzzer)
COMPATIBLE UNIT DISCONTINUED

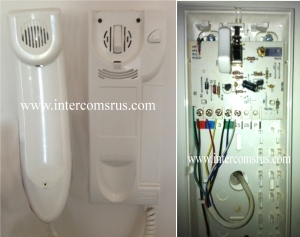

AUDIO BRAND

Audio Brand door entry handset Terminals











Info
1 Visit Web Site Here
2 (Not English)
3
4 No Compatible
25 Handset Available
26
P UK Distributors Unknown

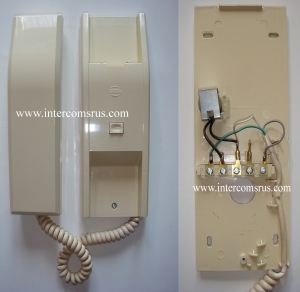

AUTA K80

Auta K80 Audio handset Terminals











Info
3 Speech Out (Mic) Replace with a
12 Call Universal handset
4 Common and set to AC Call
10 Lock
7 Speech In (Speaker)
COMPATIBLE UNIT DISCONTINUED

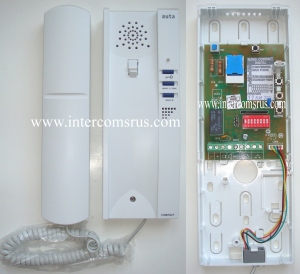

AUTA 700105 Compact Digital

Auta 700150 Compact Digital Handset Terminals











Info
- Dip switches address
+ handset
Mic
Speaker
Buzzer
Buzzer
Aux Switch
Aux Switch
CHECK AVAILABILITY

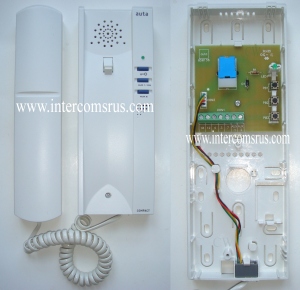

AUTA 700305 (5 Wire)

AUTA 700305 (5 Wire) Terminals











Info
10 Lock
12 Electronic Call
4 Common
3 Speech Out (Mic)
7 Speech In (Speaker)
AUX1
AUX2
CHECK AVAILABILITY
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

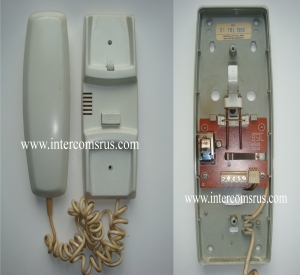

BELL SYSTEM (BSTL) OLD 801

Bell (BSTL) 801 old style door entry handset Terminals











Info
I Call Old model use new 801
R Speech Out (Mic) shown below
O Common
T Speech In (Speaker)
Z Lock
DISCONTINUED

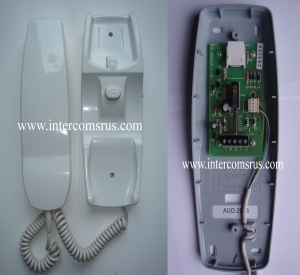

BELL SYSTEM (BSTL) NEW 801

BELL SYSTEM (BSTL) NEW 801 Terminals











Info
I Call Direct replacement for
R Speech Out (Mic) Original 801
O Common
T Speech In (Speaker) Models
Z Lock 801 Basic Handset
801S - Mute Switch
801P - Privacy of Speech
801PS - Privacy and Mute
REPLACE WITH
XL5-PS
CHECK AVAILABILITY

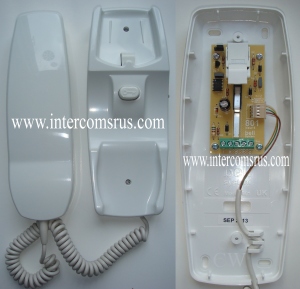

BELL SYSTEM (BSTL) NEW 801 PS (PRIVACY)

Bell (BSTL) 801 door entry handset Terminals











Info
I Call Direct replacement for
R Speech Out (Mic) Original 801
O Common
T Speech In (Speaker) Models
Z Lock 801 Basic Handset
801S - Mute Switch
801P - Privacy of Speech
801PS - Privacy and Mute
REPLACE WITH
XL5-PS
CHECK AVAILABILITY

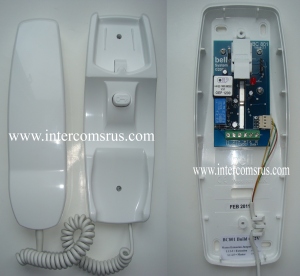

BELL SYSTEM (BSTL) BC 801 (Bell-call System Handset)

bell (BSTL) BC801 door entry intercom handset Terminals











Info
1 Audio Bellcall System Handset
2 Audio NOTE : BC801-P looks
- 12vdc - the same but will have a
+ 12vdc + sticker inside at the top
A Data with handset address
B Data you will need to order a
pre-programmed handset
with that number for it
to work.
No Longer Made
REPLACE WITH
XL5-BS
DISCONTINUED

BELL SYSTEM (BSTL) XL5-BS

BELL SYSTEM (BSTL) XL5-BS Terminals











Info
+ Replaces Model
- BS-A
A
B
1
2
CHECK AVAILABILITY

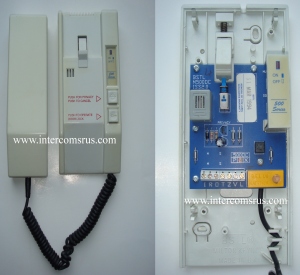

BELL SYSTEM (BSTL) SERIES 500 (DC CALL)

Bell (BSTL) Series 500 door entry intercom system handset Terminals











Info
I Call Replace with
R Speech Out (Mic) BS-LX or
O Common XL5-LX
T Speech In (Speaker)
Z Lock
V +12 DC
L Door Contact
DISCONTINUED

BELL SYSTEM (BSTL) BS-LX

Bell System BS- LX Audio Handset Terminals











Info
I Call Replaces Old Series 500
R Speech Out (Mic) Models
O Common 500X, 500PX, 500XT
T Speech In (Speaker) 500LX,500PLX &
Z Lock 500PLXT
V +12 DC
L Door Contact Replaced with XL5-LX
DISCONTINUED

BELL SYSTEM (BSTL) XL5-LX

BELL SYSTEM (BSTL) XL5-LX Terminals











Info
I Call Replaces Old Series 500
R Speech Out (Mic) Models
O Common 500X, 500PX, 500XT
T Speech In (Speaker) 500LX,500PLX,
Z Lock 500PLXT & BS-LX
V +12 DC
L Door Contact
CHECK AVAILABILITY

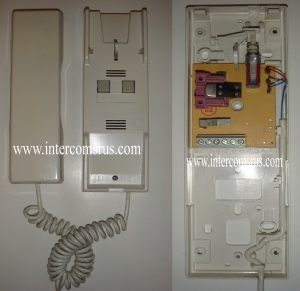

BITRON AN 0002

Bitron AN0002 door entry handset Terminals











Info
C7 Call (electronic) Replace with a
11 Call (AC buzzer) Universal Model with
1 Speech In (Speaker) AC or Electronic call
2 Speech Out (Mic) options
9 Lock
6 Common
DISCONTINUED

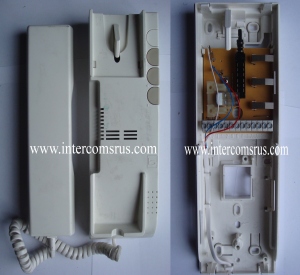

BITRON SERIES 70

Bitron series 70 intercom system handset Terminals











Info
1/2 Call (electronic) Replace with a
C7 Call (AC buzzer) Universal Model with
11 Speech In (Speaker) AC or Electronic call
1 Speech Out (Mic) options
2 Lock
9 Common Watch model numbers as
6 confusing, ie 001 or 010
8
3 RELATED ITEMS SEE
AuAu DENSIGN
Q1Q1
DISCONTINUED

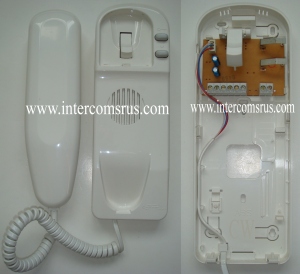

BITRON AN9102 (4 + n with tone call)

Bitron AN9102 door entry handset Terminals











Info
C7 Call (electronic) Replace with a
P Universal Model with
1 Speech In (Speaker) AC or Electronic call
2 Speech Out (Mic) options
9 Lock
6 Common Watch model numbers as
AuAu confusing, ie 001 or 010
DISCONTINUED

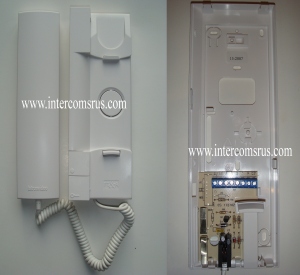

BITRON AV 1407 / 001 4+n

Bitron AV1407/001 4+n door entry handset Terminals











Info
AuAu Aux Button Replaces electronic call
6 Common 4 + n systems only
9 Lock
2 Speech Out (Mic) Watch model numbers as
1 Speech In (Speaker) confusing, ie 001 or 010
P Local Call (switched)
C7 Call From Panel
CHECK AVAILABILITY

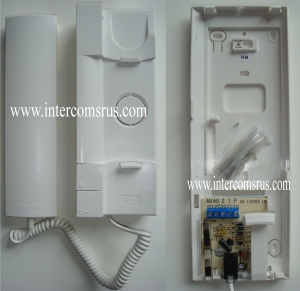

BITRON AV 1407 / 002 1+n

Bitron 1407/002  door entry handset Terminals











Info
AuAu Aux Button 2 Wire Model
1 Common
2 External Call Watch model numbers as
P Floor Call confusing, ie 1407 / 001,
002 or 010
CHECK AVAILABILITY

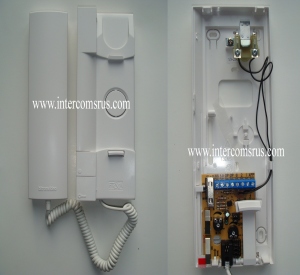

BITRON AV 1407 / 010 T-LINE UNIVERSAL (Grothe HT-623)

Bitron AV1407/010 universal door entry handset Terminals











Info
AuAu Aux Button Universal model
OpOp Lock
6 Ground compatibility, replaces
2 Speech Out (Mic) many 5 wire models.
1 Speech In (Speaker)
appE Electronic Call BUT NOT Status
appR Buzzer Call Caretaker, Tynetec or
modified systems
Watch model numbers as
confusing, ie 1407 / 001,
002 or 010
CHECK AVAILABILITY

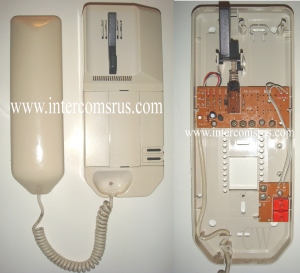

BPT C-200

BPT C200 audio system handset Terminals











Info
1 Common No longer available
2 Speech Out / Lock Use YC200 below
3 Speech In (Speaker)
4 Call Terminal Changes
C200    YC200
D1 Aux Button (Volt Free) 1        5
D2 Aux Button (Volt Free) 2        9
3        8
4        7
RELATED ITEMS SEE
TYNETEC
DISCONTINUED

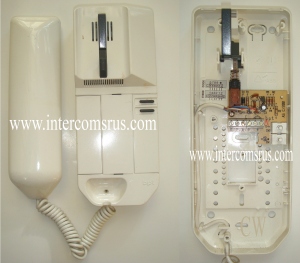

BPT AS C/200 (Later Model)

BPT C200 handset later model Terminals











Info
5 Common No longer available
9 Speech Out / Lock Use YC200 below
8 Speech In (Speaker)
7 Call Terminal Changes
C200    E/200    YC200
. Aux Button (Volt Free) 5        1        5
. Aux Button (Volt Free) 9        2        9
8        3        8
7        4        7
RELATED ITEMS SEE
TYNETEC
DISCONTINUED

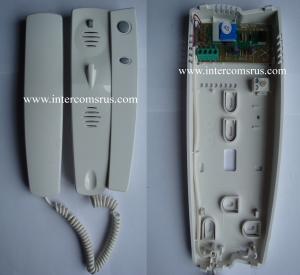

BPT YC-200 (Basic 4 Wire Systems)

BPT YC 200 door entry handset Terminals











Info
5 Common No Longer Available
7 Call Use AGATA C200
8 Speech In (Speaker) Below.
9 Speech Out / Lock
Terminal Changes
C200    YC200
1        5
2        9
3        8
4        7
Other options with
multiple buttons
DISCONTINUED

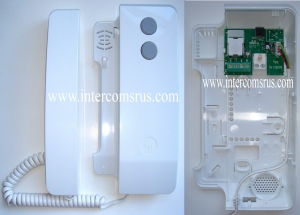

BPT AGATA C 200 (Basic 4 Wire Systems)

BPT Agata C200 Terminals











Info
5 Common Replaces C/200 & YC200
7 Call Terminal Changes
8 Speech In (Speaker) C200    YC200
9 Speech Out / Lock 1        5
2        9
Very Tiny Handset 3        8
4        7
Other options with
multiple buttons
Limited cable entries
CHECK AVAILABILITY

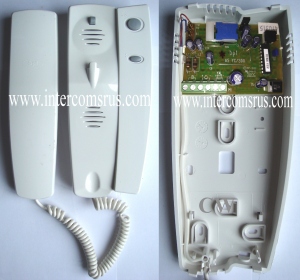

BPT YC-300 (System 300)

BPT YC300 digital door entry handset Terminals











Info
B Line 2 Wire Model
B Line
No longer available
Bell (Bell Symbol) Local Bell
Bell (Bell Symbol) Local Bell
Sp (Speaker Symbol) Speaker
Sp (Speaker Symbol) Speaker
DISCONTINUED

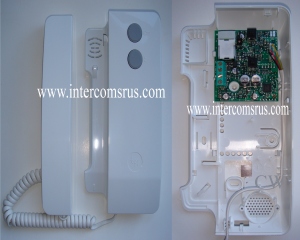

BPT AGATA C (X1 (2 Wire))

BPT Agata C (system 300 X1 2 Wire) Terminals











Info
B Line
B Line
Bell (Bell Symbol) Local Bell 2 Wire Model
Bell (Bell Symbol) Local Bell
For use with System X1
Very Tiny Handset
Agata C/B version has
additional function buttons
Limited cable entries
CHECK AVAILABILITY

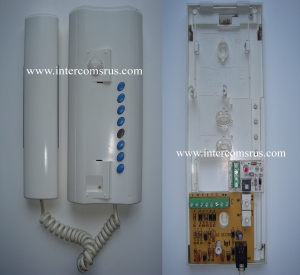

BPT XC-201

BPT XC 201 intercom system handset for door entry Terminals











Info
E
20
9 Speech Out / Lock
8 Speech In (Speaker)
7 Call
5 Common
. . Aux Button
DISCONTINUED

BTICINO 344202 SPRINT (2 Wire)

Bticino 344202 sprint 2 wire intercom system handset Terminals











Info
3 Bus Input 2 wire handset
4 Bus Input
Watch confusing part
numbering ie 344202 is
a 2 wire handset, 334202
is a 5 wire
Needs Configuration Pins
To Operate
Discontinued
Use 344242 (2 wire)
DISCONTINUED

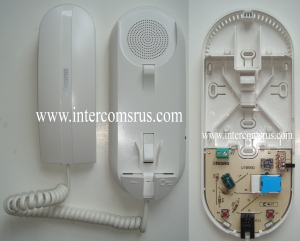

BTICINO 344242 (2 Wire)

BTICINO 344242 (2 Wire) Terminals











Info
3 Bus Input 2 wire handset
4 Bus Input
Replaces 344202
Needs Configuration Pins
To Operate
CHECK AVAILABILITY

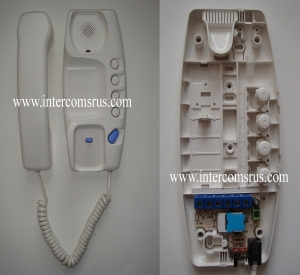

BTICINO 334202 SPRINT OLD STYLE (5 Wire)

Bticino 334202 old style 5 wire intercom system handset Terminals











Info
1A Old model 5 wire, replace
1 Common with model below
3 Audio
4 Audio Watch confusing part
5 Call numbering ie 344202 is
6 Call a 2 wire handset, 334202
is a 5 wire
DISCONTINUED

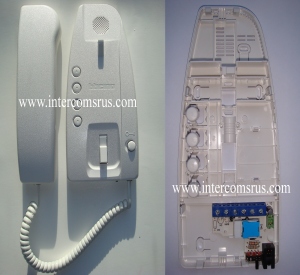

BTICINO 334202 SPRINT (5 Wire)

Bticino 334202 5 wire intercom system handset Terminals











Info
20 Floor Call New 5 wire design
1 Common
3 Audio Watch confusing part
4 Audio numbering ie 344202 is
5 Call a 2 wire handset, 334202
6 Lock is a 5 wire
CHECK AVAILABILITY
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

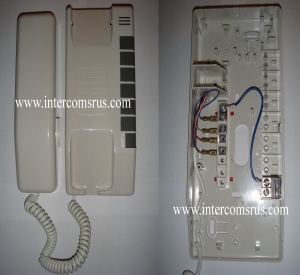

COMELIT VOX 2000 (2 Wire)

Comelit Vox 2000 intercom system handset Terminals











Info
3 Speech In/Out/Lock RELATED ITEMS SEE
4 Common CARETAKER &
ISM
DISCONTINUED

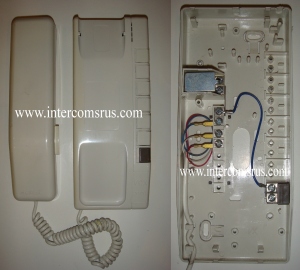

COMELIT VOX 2000 (5 Wire)

Comelit Vox 2000 5 wire Terminals











Info
1 AC Call RELATED ITEMS SEE
2 Speech In (Speaker) CARETAKER &
3 Speech Out (Mic) ISM
4 Common
P1 Lock
COMPATIBLE UNIT DISCONTINUED

COMELIT OK 2404W

Comelit 2404W Ok intercom system handset Terminals











Info
S Call (Electronic) Replace with 2603u
2 Speech In (Speaker) Style Universal
3 Speech Out (Mic)
4 Common RELATED ITEMS SEE
P1 Lock ISM
C Aux Button Common
P2 Aux Button
COMPATIBLE UNIT DISCONTINUED

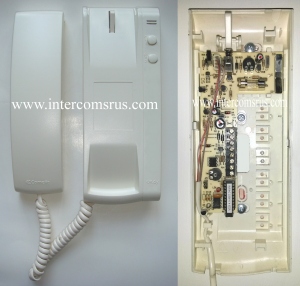

COMELIT 2406W

COMELIT 2406W Terminals











Info
P2 Replace with 2606
4-
+24 RELATED ITEMS SEE
LIN ISM
32
2
RFP
CFP
DISCONTINUED

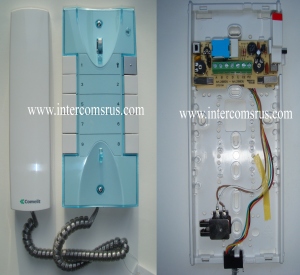

COMELIT Style 2602u (Universal)

Comelit 2602u Style universal door entry intercom system handset Terminals











Info
A Lock Universal Handset
B Speech Out (Mic)
C Common
D Call (Buzz or Electronic) Discontinued Use
E Speech In (Speaker) 2603u Above
C2,P2 Aux Button N/O
Sw Call Type selector
Trimm Mic Vol 1/2 and Sp Vol
Jumper Config-Jumper
DISCONTINUED

COMELIT Style 2603u BASIC (Universal)

Comelit 2603u Style universal door entry intercom system handset Terminals











Info
A Lock Universal model
B Speech Out (Mic)
C Common compatibility, replaces
D Call (Buzz or Electronic) many 5 wire models.
E Speech In (Speaker)
C2,P2 Aux Button N/O BUT NOT Status
Sw Call Type selector Caretaker, Tynetec or
modified systems
Trimm Mic Vol 1/2 and Sp Vol
Jumper Config-Jumper Options Use Bitron
or Fermax Universal
CHECK AVAILABILITY

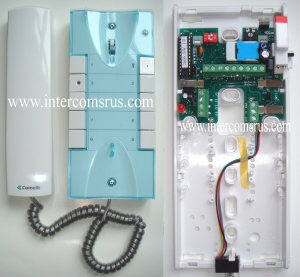

COMELIT Style 2606

COMELIT Style 2606 Terminals











Info
LED 24v Replaces 2406W
CP2 AP
C2 PAN
P2 AL
RFP COM
CFP
LIN
4
3
2
24v
Special Order

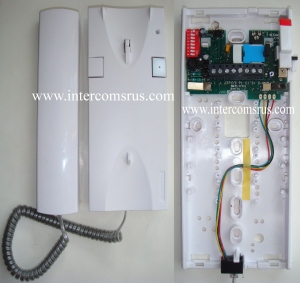

COMELIT 2608 SIMPLEBUS (2 Wire)

Comelit 2608 simplebus audio handset Terminals











Info
L BUS Replaces Okay
L BUS 2408WA Handset
CFP Floor Call
CFP Floor Call Set binary number in
P1 Aux Button Handset
C1 Aux Button
S+ Additional Sounder Volume adjuster top
S- Additional Sounder right
Special Order

COMELIT 2628 Style

Comelit 2628 style intercom system handset Terminals











Info
LL Bus Input Handset for Simplebus
CFP,CFP Local Floor Call 1 / 2
P3, C3 N/O 24v 100mA
Services Button
S+ Ext Sounder +
S- Ext Sounder -
SW3 Selector Sw bus 2/3
Trimmer MicVol
Special Order

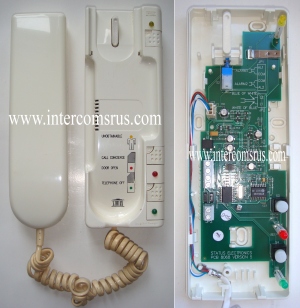

CONSILIUM AQUARIUS

CONSILIUM AQUARIUS Terminals











Info

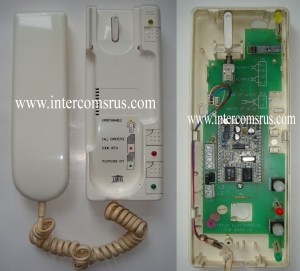

L1 Bus Replace With
L2 Bus Status MAT2C
AL1+ Alarm 1
AL1- Alarm Common Related Also See
AL2+ Alarm 2 GDX Range
AL2- Alarm 2 Common
DISCONTINUED
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

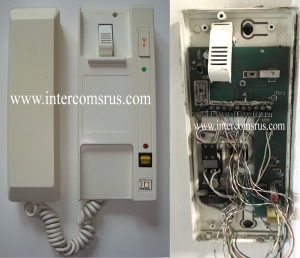

DAVELL

DAVELL Terminals











Info
1 No Longer Made
2 No Replacement
3
4
5
6
7
8
9
DISCONTINUED
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

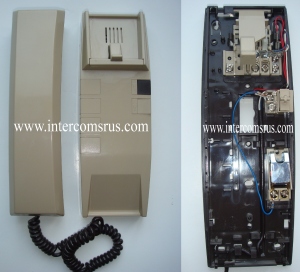

ELVOX 801 Series

elvox 801 series door entry system handset Terminals











Info
1 Speech In (Speaker) No Longer Available
2 Speech Out (Mic) Use 8870 / 900 or 620R/1
3 Common
6 Call
7 Lock
DISCONTINUED

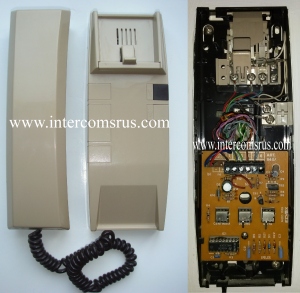

ELVOX 840

Elvox 840 digital audio handset Terminals











Info
1 No Longer Available
2
3
4
5
6
DISCONTINUED

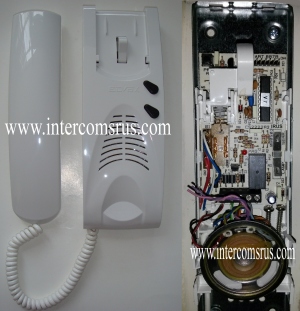

ELVOX 887 B (Digi Bus)

Elvox 887B digi-bus audio handset Terminals











Info
1 Digi Bus Systems
3
4 Other Handsets in range
5 887 C Digit2Video
6 887D Digi2Wire
Can also use Elvox 6204/1
as a replacement
DISCONTINUED

ELVOX 8870

Elvox 8870 door entry handset Terminals











Info
B 5 Wire Systems AC
1 Speech In (Speaker) Call
2 Speech Out (Mic)
3 Common (Link to 4/5) Can replace with a
4/5 Universal Model
6 Call
7 Lock
8 Aux Button 2
COMPATIBLE UNIT CHECK AVAILABILITY

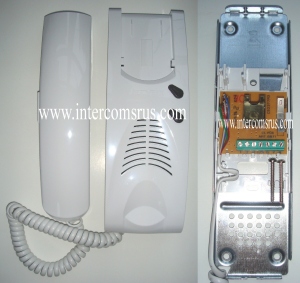

ELVOX 8871 (Push To Talk)

ELVOX 8871  (Push To Talk) Terminals











Info
1 Speech In (Speaker) 5 Wire Systems AC
2 Speech Out (Mic) Call
3 Common (Link to 4/5)
4/5 No Cradle Switch
6 Call Push To Talk
7 Lock
8 Aux Button 2
Special Order

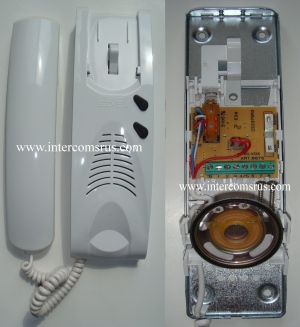

ELVOX 8875 (Electronic Call)

Elvox 8875 Door Entry Handset (Electronic Call) Terminals











Info
B 5 Wire Electronic
1 Speech In (Speaker) Call Systems
2 Speech Out (Mic)
3 Common (Link to 4/5) Can use Elvox 6200
4/5 as an alternative
6 Call
7 Lock
8 Aux Button 2
Special Order

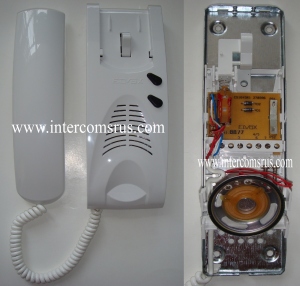

ELVOX 8877 (Digi-Bus)

Elvox 8877 Door Entry Handset for Digi-Bus Systems Terminals











Info
1 Phone Line For Digi-Bus Systems
3 Negative Line With 949B Distributors
6 Additional Ring Tone
7 Aux Button
Special Order

ELVOX 8879 (2 WIRE)

ELVOX 8879 (2 WIRE) Terminals











Info
1 Bus
2 Bus
4 Local Call
5
6S
6P Local Call
Special Order

ELVOX 900

Elvox 900 door entry handset Terminals











Info
B 5 Wire Systems AC
1 Speech In (Speaker) Call
2 Speech Out (Mic)
3 Common (link to 4/5) Can replace with a
4/5 Universal Model
6 Call
7 Lock
COMPATIBLE UNIT CHECK AVAILABILITY

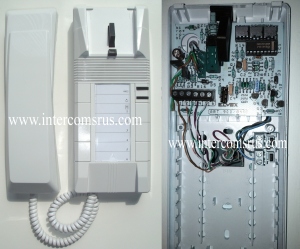

ELVOX 900-845 (5 Wire Digital)

ELVOX 900-845  (5 Wire Digital) Terminals











Info
1 No Replacement Made
2
3
4
5
6
DISCONTINUED

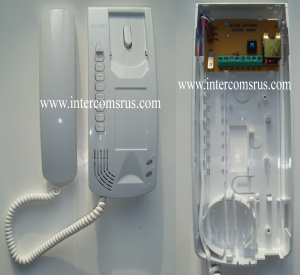

ELVOX 620R/1

Elvox 620R/1 door entry  handset Terminals











Info
B Speech In (Speaker) 5 Wire Systems AC
1 Speech Out (Mic) Call
2 Common (Link to 4/5)
3 Call Can replace with a
6 Lock Universal Model
7
COMPATIBLE UNIT COMPATIBLE UNIT
AVAILABILITY

ELVOX 6200 (Electronic Call)

ELVOX 6200 (Electronic Call) Terminals











Info
7 Lock Use with 6680 control
Au and electronic call apps
1 Speech In (Speaker)
2 Speech Out (Mic)
3 Common (Link to 5)
6E Call (Electronic)
6
6P
6S
Special Order

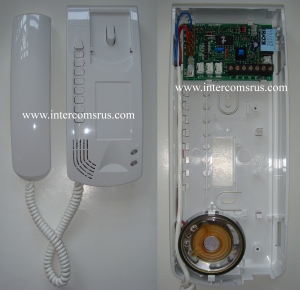

ELVOX 6204/1 (For Digi-Bus)

Elvox 6204/1 audio door entry handset Terminals











Info
1 Digital Line (Tran/Rec) Used With Digi-Bus
3 Voice & Call Line Systems
4 Ground Ref (PSU)
5 Line +13.5VDC Can also use 887 B
12 Supp Voice Line 930D as a replacement
11 Line For Door Call
Special Order

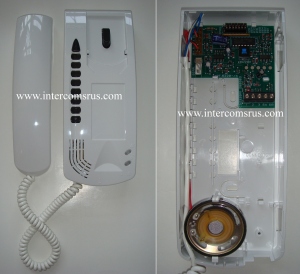

ELVOX 6220A (For Digit 2 Wires)

Elvox 6220A audio door entry handset Terminals











Info
1 Data Line Used With Digit2wires
2 Data Line Digital 2 Wire
3 Systems
6A Outdoor Push Button
6B Outdoor Push Button
Special Order

ENSIGN 3406 (Council Systems)

ensign 3406 intercom system handset Terminals











Info
C Ensign
1 new models are 3407
2 and 7800 digital series
L
- Usually fitted to council /
A housing association
+ developments
P
R Old model replaced
by Ensign 3407
DISCONTINUED

ENSIGN 3407 (Council Systems)

Ensign 3407 audio door entry handset Terminals











Info
C ENSIGN handsets are
1 usually fitted to council /
2 housing association
L developments
-
A
+
P
R
CHECK AVAILABILITY

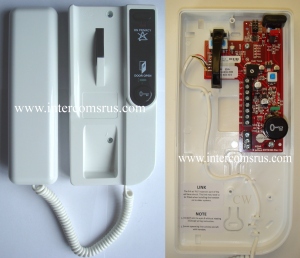

ENTROTECH ED4 (Council Systems)

Entrotech ED4 intercom system handset Terminals











Info
DR White/Blue ED3 Latching Privacy s/w
VT Blue/White ED4 Timed Priv 5m to 8h
0V White/Orange + Variants have call volume
BZ Orange/White
S2 White/Green ED3 & ED4 and (+) types
S1 Green/White work on any Entrotec
DS White/Brown tone call system.
EX To Ext Sounder
RH3+ (Replacement handset
3) will work on all Entrotec
Systems and other makes
CHECK AVAILABILITY

ENTROTECH ED4 + (Council Systems)

Entrotec ED4+ audio door entry handset Terminals











Info
DR White/Blue Usually fitted to
VT Blue/White council housing
0V White/Orange association builds etc
BZ Orange/White
S2 White/Green The ED4+ is an enhanced
S1 Green/White version with call tone
DS White/Brown volume control on PCB.
EX To Ext Sounder
CHECK AVAILABILITY

ENTRYPHONE 5901 Legacy

Entryphone 5901 legacy Terminals











Info
B,F,G Common Iconic British Handset
L Speech In (Speaker) built to last forever (well
P Speech Out (Mic) almost !)
3 Lock
A Call Entryphone handsets
are compatible (apart
from 500 series)
Expect low outward
speech if swapped with a
Non-Entryphone handset
DISCONTINUED

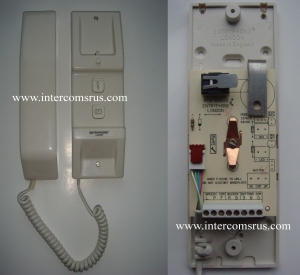

ENTRYPHONE 8802

Entryphone 8802 intercom system handset Terminals











Info
B,F,G Common 5 wire AC buzz
L Speech In (Speaker) handset
P Speech Out (Mic)
3 Lock Entryphone handsets
A Call are compatible (apart
8 Aux Button from 500 series)
(2 Buttons) Expect low outward
speech if swapped with a
Non-Entryphone handset
CHECK AVAILABILITY

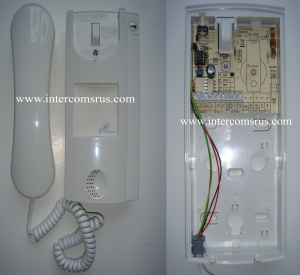

ENTRYPHONE 201

Entryphone 201door entry intercom system handset Terminals











Info
B,F,G Common Electronic Ring
L Speech In (Speaker) A2 Electronic call Term
P Speech Out (Mic) 1 Release Button
1 Lock
A2 Electronic Call Entryphone handsets
are compatible (apart
(1 Lock Button) from 500 series)
Expect low outward
speech if swapped with a
Non-Entryphone handset
CHECK AVAILABILITY

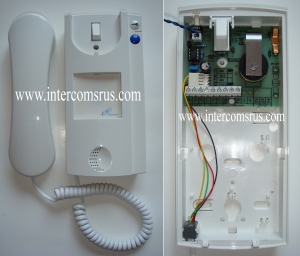

ENTRYPHONE 202

Entryphone 202 audio door entry handset Terminals











Info
B,F,G Common Buzz & Electronic Ring
L Speech In (Speaker)
P Speech Out (Mic) A1 AC Buzzer Term
1 Lock A2 Electronic call Term
A1 Call 2 x Function Buttons
(For use on Entryphone handsets
Consierge Systems are compatible (apart
or those requiring from 500 series)
2 buttons) Expect low outward
speech if swapped with a
Non-Entryphone handset
Special Order
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

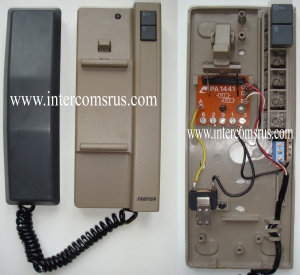

FARFISA 724N

farfisa 724n door entry intercom system handset Terminals











Info
1 Speech Out (Mic) Standard 5 wire handset
2 Speech In (Speaker)

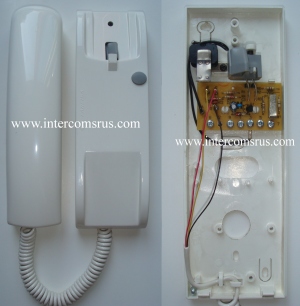

3 Common Use PT510w
5 Lock
6 Call OR USE A
UNIVERSAL MODEL
COMPATIBLE UNIT DISCONTINUED

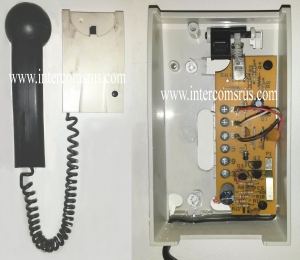

FARFISA PV100

FARFISA PV100 Terminals











Info
1 Speech Out (Mic) Standard 5 wire handset
2 Speech In (Speaker)
3 Common Use PT510w
5 Lock
6 Call OR USE A
9 Not Used UNIVERSAL MODEL
DISCONTINUED

FARFISA PA 1441

Farfisa PA1441 audio door entry handset Terminals











Info
1 Speech Out (Mic) Standard 5 wire handset
2 Speech In (Speaker)
3 Common Use PT 510w
5 Lock
6 Call OR USE A
UNIVERSAL MODEL
COMPATIBLE UNIT DISCONTINUED

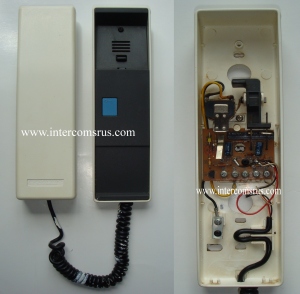

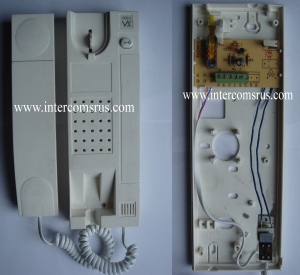

FARFISA 924W

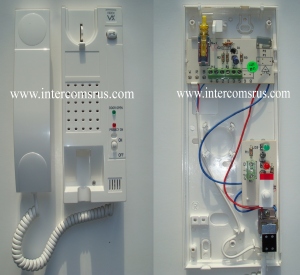

Farfisa 924W Door Entry Handset Terminals











Info
1 Speech Out (Mic) Standard 5 wire handset
2 Speech In (Speaker)
3 Common Use PT510w
5 Lock
6 Call OR USE A
UNIVERSAL MODEL
COMPATIBLE UNIT DISCONTINUED

FARFISA PT510W

farfisa pt510w intercom system handset Terminals











Info
1 Speech Out (Mic) Replaces Older AC Call
2 Speech In (Speaker) Farfisa Handsets
3 Common
5 Lock OR USE A
6 Call UNIVERSAL MODEL
COMPATIBLE UNIT CHECK AVAILABILITY

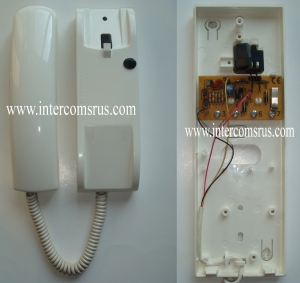

FARFISA PT511 SW/1

farfisa pt511w door entry intercom system handset Terminals











Info
1 Speech / Lock / Call 2 Wire Intercom
3 Common Handset
6
7
DISCONTINUED

FERMAX NR-0104

Fermax NR 0104 audio door entry handset Terminals











Info
1 Lock Old Model Replaced
2 Speech Out (Mic)
3 Common Use 3399 Universal
4ll Speech In (Speaker)
5op
6 Call
DISCONTINUED

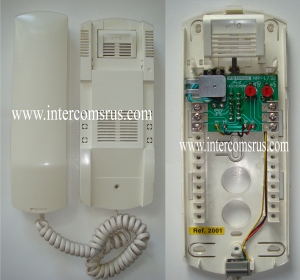

FERMAX 2001 (UNIVERSAL)

Fermax 2001 original universal audio handset Terminals











Info
1 Lock Old Model Replaced
2 Speech Out (Mic) By Loft 3399
3 Common Universal
6 Speech In (Speaker)
4 AC Call
5 Electronic Call
DISCONTINUED

FERMAX 2044

Fermax 2044 Door Entry Handset Terminals











Info
1 Lock Old Model Replaced
2 Speech Out (Mic)
3 Common Use 3399 Universal
6 Speech In (Speaker)
4 Call
DISCONTINUED

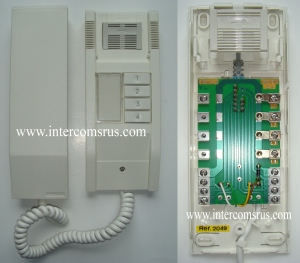

FERMAX 2049

Fermax 2049 Door Entry Handset Terminals











Info
1 Lock
2 Speech Out (Mic)
3 Common
6 Speech In (Speaker)
4 Int Call Input
C Int Call Common
Z Panel Call
L1 Internal call 1
L2 Internal call 2
L3 Internal call 3
L4 Internal call 4
DISCONTINUED

FERMAX CITYMAX 8044 (Basic)

Fermax 8044 door entry handset Terminals











Info
1 Lock Direct Replacement For
2 Speech Out (Mic) FERMAX 2044
3 Common
6 Speech In (Speaker) Some very old systems
4 Call before Cityline panels
need the 8039 or 3399
Replaced by the
Fermax Loft 3393(4+n)
DISCONTINUED

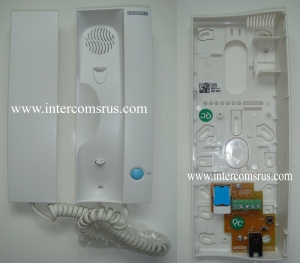

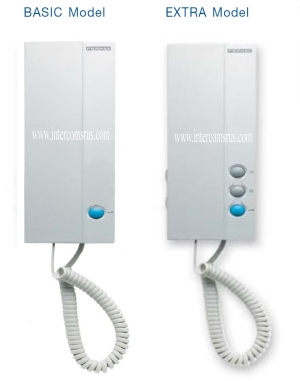

FERMAX LOFT 3393 (4+n)

Fermax 3393 audio door entry handset Terminals











Info
1 Lock Direct Replacement For
2 Speech Out (Mic) FERMAX 2044
3 Common & 8044
6 Speech In (Speaker)
4 Call
Some very old systems
before Cityline panels
need the 8039 or 3399
CHECK AVAILABILITY

FERMAX LOFT 3394

Fermax 3394 audio door entry handset Terminals











Info
+12 LED Input Get correct model
F2 Function Button 2 as all look same
F1 Function Button 1
6 Speech In (Speaker)
4 Call
3 Common
2 Speech Out (Mic)
1 Lock
Special Order

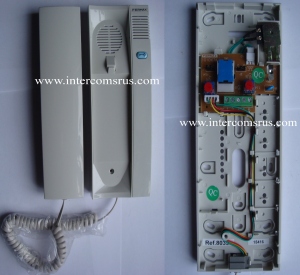

FERMAX CITYMAX 8039 (UNIVERSAL)

Fermax 8039 Universal Door Entry Handset Terminals











Info
1 Lock Universal model
2 Speech Out (Mic)
3 Common compatibility, replaces
6 Speech In (Speaker) many 5 wire models.
4 Call
BUT NOT Status
Caretaker, Tynetec or
modified systems
Replaced by the
LOFT 3399 Universal
DISCONTINUED

FERMAX LOFT 3399 (UNIVERSAL)

Fermax 3399 loft universal audio door entry handset Terminals











Info
1 Lock Direct Replacement For
2 Speech Out (Mic) FERMAX 2044
3 Common 8044 & 8039
6 Speech In (Speaker)
4 Call Some very old systems
before Cityline panels
need the 8039 or 3399
CHECK AVAILABILITY

FERMAX 8091 ECOKIT

Fermax 8091 Eco Kit audio handset Terminals











Info
~ 12vac Supply Correct model must be
~ 12vac Supply used with ECOKIT
6
4 Universal WILL NOT
3 WORK due to AC
2 supply requirement at
1 handset.
Discontinued USE
FERMAX 3548
Special Order

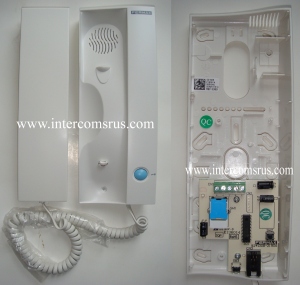

FERMAX LOFT 3390 VDS

Fermax 3390 VDS audio door entry handset Terminals











Info
+ Supply 18VDC+ Get correct model
- Supply 18VDC- as all look same
L Data & Audio
A Extension Call
T Local Call (- to T)
Special Order
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

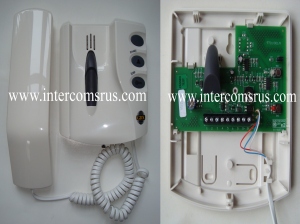

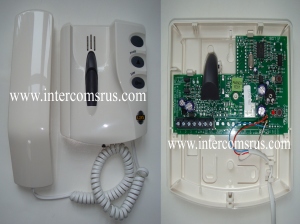

GDX AUDIO HANDSET (GDX 1 / 3 (7 WIRE SYSTEM)

GDX 1/3 audio door entry handset Terminals











Info
1 Mic (speech out) whi/bl Generally used on
2 Speaker (speech in) bl/whi new council blocks.
3 0V whi/orr
4 12VDC orr/whi Not compatible with GDX5
5 LOCK whi/grn (4 WIRE) Systems use
6 Call grn/whi Part : 23121 BELOW
D Door Alarm whi/bro
Part : 23150
Special Order

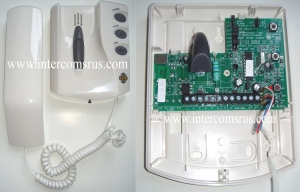

GDX AUDIO HANDSET (3 Button Universal with Consierge)

GDX AUDIO HANDSET (3 Button Universal with Consierge) Terminals











Info
1 SND+ Generally used on
2 SND- new council blocks.
3 B+
4 B- Part : 23151
5
6
C
Special Order

GDX AUDIO HANDSET (GDX5 2B Phone (4 WIRE SYSTEM)

GDX 23121 audio door entry handset Terminals











Info
1 Mic (speech out) whi/bl Generally used on
2 Speaker (speech in) bl/whi new council blocks.
3 0V whi/orr
4 12VDC orr/whi Not compatible with GDX1
or GDX3 use PART : 23150
Shown Above
Part : 23121
CHECK AVAILABILITY

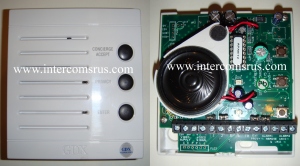

GDX AUDIO APARTMENT STATION (GDX5 3B Audio Apt Stn)

GDX 123510 apartment station Terminals











Info
1 Mic (speech out) whi/bl Generally used on
2 Speaker (speech in) bl/whi new council blocks.
3 0V whi/orr
4 12VDC orr/whi Part : 123510
Not compatible with GDX1
or GDX3 use 23150
2 button handset (6 wire)
CHECK AVAILABILITY

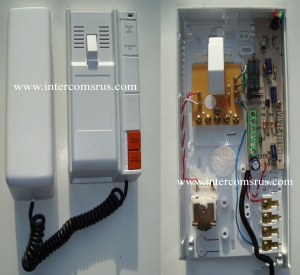

GOLMAR T812/DP

Golmar T812/DP intercom system handset Terminals











Info
P1 Lock
5 Speech Out (Mic)
3 Common
10 Speech In (Speaker)
7 AC Call
DISCONTINUED

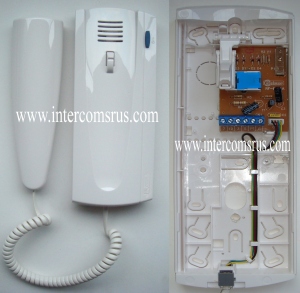

GOLMAR T-700

Golmar T700 audio door entry handset Terminals











Info
P1 Lock T-710R Universal Will
5 Speech Out (Mic) Replace This Model
3 Common
10 Speech In (Speaker)
7 AC Call
0 Electronic Call
COMPATIBLE UNIT

GOLMAR T-710R PLATEA (UNIVERSAL)

Golmar T710R Platea universal intercom system handset Terminals











Info
P1 Lock Universal model
5 Speech Out (Mic)
3 Common compatibility
10 Speech In (Speaker)
7 AC Call Note : Will not replace
0 Electronic Call Digital Dial or Privacy Models
COMPATIBLE UNIT
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

ISM 2600/NIDT (Council Systems)

ISM 2600 / NIDT audio door entry handset Terminals











Info
19 Replaced by
20 2450 / NIDT
23
22 * It will not work if you
1 order the wrong one
21
P1
P2
DISCONTINUED

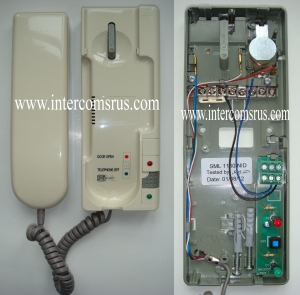

ISM 2404/NIDT (Council Systems)

ISM 2404/NIDT audio door entry handset Terminals











Info
S 2404/NIDT used on 1600
2 functional & 2000 digital
3 Systems
4
P1 Replaced by 2404NIDTC
C
P2 TO IDENTIFY
PO Wires to
SI main pcb are Yel/Bla
DM as shown.
+ * It will not work if you
order the wrong one
Special Order

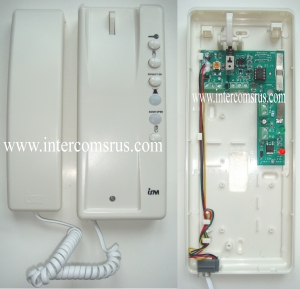

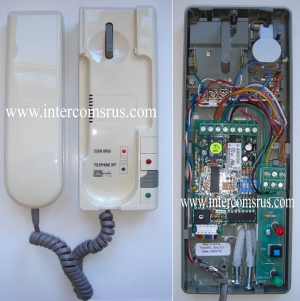

ISM 2404/NIDTC (Council Systems)

ISM 2404/NIDTC (Council Systems) Terminals











Info
S 2404/NIDTC replaces
2 original 2404/NIDT
3 used on
4 1600 functional
P1 & 2000 digital systems
CC
+ * It will not work if you
DM order the wrong one
SI
PO
CHECK AVAILABILITY

ISM 2450/NIDT (Council Systems)

ISM 2450/NIDT audio door entry handset Terminals











Info
S 2450/NIDT used on 1500
2 functional, 2600 functional
3 & 2650 digital systems
4
P1 Replaced by 2450NIDTC
C
P2 TO IDENTIFY
PO Wires to main pcb
SI are Yel/Orr
DM as shown.
* It will not work if you
order the wrong one
Special Order

ISM 2450/NIDTC (Council Systems)

ISM 2450/NIDTC (Council Systems) Terminals











Info
S 2450/NIDT used on 1500
2 functional, 2600 functional
3 & 2650 digital systems
4
P1 * It will not work if you
C order the wrong one
P2
PO
SI
DM
CHECK AVAILABILITY
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

KALLGLOBE TN-5HK

Kallglobe TN5 HK Door Entry Handset Terminals











Info
1 Speech Out (Mic) Can Replace With
2 Speech In (Speaker) a Universal
3 Common Model
5 Lock
V Call (Electronic) TN5-HK    BITRON
1        2
LL Aux Button 2        1
3        6
5        Op
V        App
CHECK AVAILABILITY
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

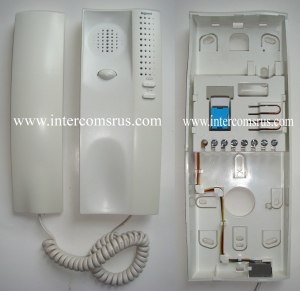

LEGRAND (TEGUI T-71E)

Tegui T71E audio door entry handset Terminals











Info
1E Call Also a 2 wire model
2 Common (Also Discontinued)
3 Lock
4 Speech Out (Mic)
5 Speech In (Speaker)
P Aux Button
P Aux Button
DISCONTINUED

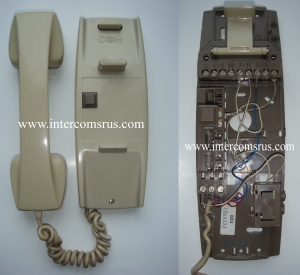

LT TERRANEO 603 (Original)

LT 603 original intercom system handset Terminals











Info
T1 Lock Discontinued
1 Speech Out (Mic) USE
2 Speech In (Speaker) UNIVERSAL MODEL
3 Common
6 Call
COMPATIBLE UNIT

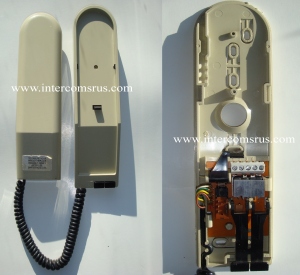

LT TERRANEO 603n

LT 603n intercom system handset Terminals











Info
T1 Lock Discontinued
1 Speech Out (Mic) USE
2 Speech In (Speaker) UNIVERSAL MODEL
3 Common
6 Call
COMPATIBLE UNIT

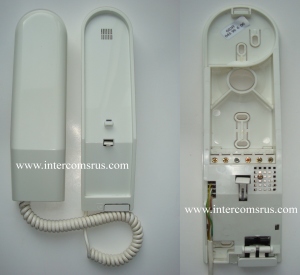

LT TERRANEO 603n later model (white)

LT 603n later version door entry intercom system handset in white Terminals











Info
T1 Lock Discontinued
1 Speech Out (Mic) USE
2 Speech In (Speaker) UNIVERSAL MODEL
3 Common
6 Call
COMPATIBLE UNIT

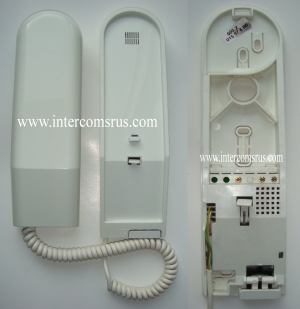

LT TERRANEO 603.2 (2 WIRE)

LT Terraneo 603.2 (2 wire handset) Terminals











Info
1 Common Rare Model
2 Output for ex sounder Bticino Sprint 334252
4 Audio & Lock Lines is suggested as a
replacement by
manufacturer
Note : 2 wire kit handset
looks the same, but is
NOT COMPATIBLE
DISCONTINUED

LT TERRANEO 600 (Beige)

LT 600 door entry intercom system handset Terminals











Info
1 Speech Out (Mic) Can replace with most 5
2 Speech In (Speaker) wire AC Call handsets,
3 Common unless intercommunicating.
4
5 USE
6 Call BELL 801 (If using a bell 51
7 or 61 amplifier and providing
8 only 1 aux button is required)
9 Or
10 A UNIVERSAL
11 MODEL
12 (Terminal Changes As 603n)
T1 Lock
COMPATIBLE UNIT

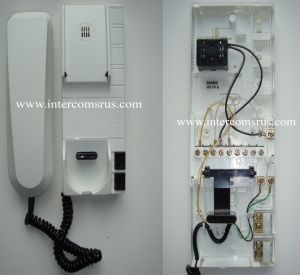

LT TERRANEO 600 (White)

LT 600 door entry intercom system handset (white) Terminals











Info
1 Speech Out (Mic) Can replace with most 5
2 Speech In (Speaker) wire AC Call handsets,
3 Common unless intercommunicating.
4
5 USE
6 Call BELL 801 (If using a bell 51
7 or 61 amplifier and providing
8 only 1 aux button is required)
9 Or
10 A UNIVERSAL
11 MODEL
12 (Terminal Changes As 603n)
T1 Lock
COMPATIBLE UNIT

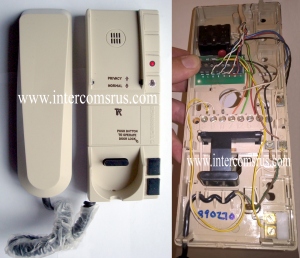

TR Door Entry LT 600 (MODIFICATION)

TR Door Entry LT 600 (MODIFICATION) Terminals











Info
1 Modified LT 600
2 by TR Door Entry
3
4 Can replace with a
5 universal model, but
6 PCB and lights need
7 to be transferred to
8 new handset.
DISCONTINUED

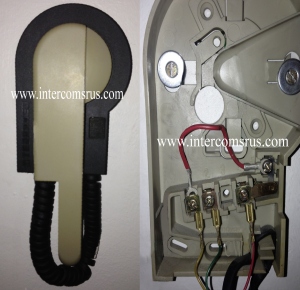

LT TERRANEO PH620WS

LT Terraneo PH620WS Terminals











Info
1 0V DC
2 Output sounder 40.50N
4 Audio & Lock Release
5 Not Used
DISCONTINUED

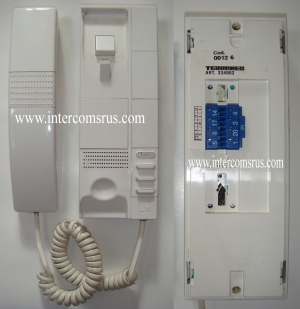

LT TERRANEO 334002 (4+n)

LT TERRANEO 334002 (4+n) Terminals











Info
1 Note : Dip switches are
3 under the front flap
4
5
6
14
17
20
Special Order
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

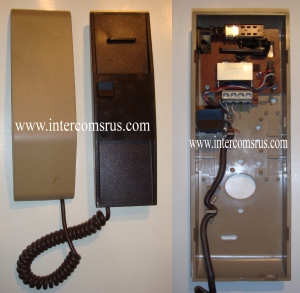

SCHOONER

SCHOONER Terminals











Info
T1 Lock Can replace with most 5
1 Speech Out (Mic) wire AC Call handsets.
2 Speech In (Speaker)
3 Common USE
6 Call A UNIVERSAL
MODEL
COMPATIBLE UNIT DISCONTINUED

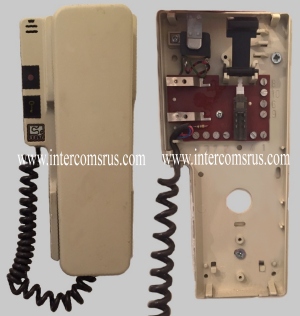

SELTI (Original)

SELTI (Original) Terminals











Info
5 Lock Can replace with most 5
1 Speech Out (Mic) wire AC Call handsets.
2 Speech In (Speaker)
3 Common USE Videx 3101 or
6 Call A UNIVERSAL
MODEL
DISCONTINUED

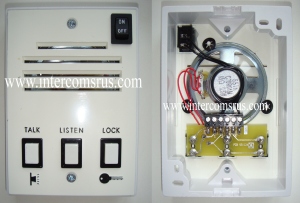

SENTRY L70-CO

SENTRY L70-CO Terminals











Info
1 Common For use with
2 Call Sentry push to talk
3 Speech Line systems.
4 Speech Line
5 Lock
6 Privacy Button
DISCONTINUED

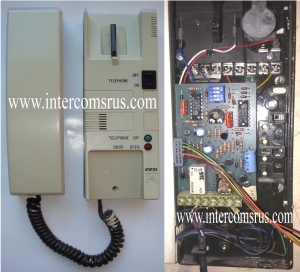

STATUS 5800/TSL (Council Systems)

STATUS 5800/TSL  (Council Systems) Terminals











Info
A Replaced by 1130/TSL
B
C There are so many versions
D of Status handsets best way
E to identify is to send picture
F and terminals to the supplier
G below (click availability)
H
Later handsets have a sticker
inside with model number
DISCONTINUED

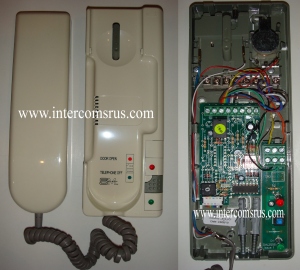

STATUS 1130 / TSL (Council Systems)

STATUS 1130 / TSL  (Council Systems) Terminals











Info
A Replaced by 1130/TSL
B
C There are so many versions
D of Status handsets best way
E to identify is to send picture
F and terminals to the supplier
G below (click availability)
H
Later handsets have a sticker
inside with model number
Special Order

STATUS (SML 1130/T) AC Call (Council Systems)

STATUS (SML 1130/T) AC Call (Council Systems) Terminals











Info
A Grn/White Pair There are so many versions
B Blu/Red Pair of Status handsets best way
C White Of Slate to identify is to send picture
D Blue Of White and terminals to the supplier
E Orange Of White below (click availability)
F Slate Of White
G Bro/White Pair Later handsets have a sticker
H Whi/Blu & Whi/Oran inside with model number
Special Order

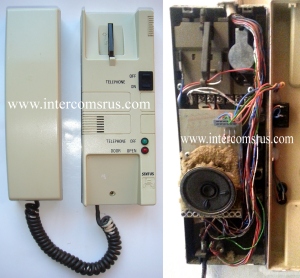

STATUS (5800/DC) Electronic Call (Council Systems)

STATUS (5800/DC) Electronic Call (Council Systems) Terminals











Info
6 whi/blu & whi/orr There are so many versions
O blu/red of Status handsets best way
K whi/gry to identify is to send picture
J gry/whi and terminals to the supplier
L bro/whi below (click availability)
2 orr/whi
M whi/grn Later handsets have a sticker
9 grn/whi inside with model number
N whi/bro
1 blu/whi Replaced by 1131/DC
DISCONTINUED

STATUS (SML 1131/DC) Electronic Call (Council Systems)

STATUS (SML 1131/DC) Electronic Call (Council Systems) Terminals











Info
6 whi/blu & whi/orr There are so many versions
O blu/red of Status handsets best way
K whi/gry to identify is to send picture
J gry/whi and terminals to the supplier
L bro/whi below (click availability)
2 orr/whi
M whi/grn Later handsets have a sticker
9 grn/whi inside with model number
N whi/bro
1 blu/whi
Special Order

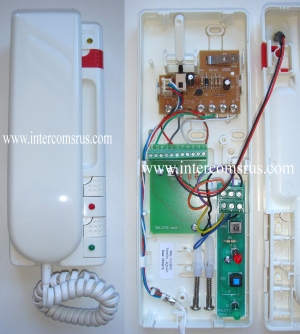

STATUS (SML 1131/DCP) Electronic Call (Council Systems)

STATUS (SML 1131/DCP) Electronic Call (Council Systems) Terminals











Info
6 whi/blu & whi/orr There are so many versions
O blu/red of Status handsets best way
K whi/gry to identify is to send picture
J gry/whi and terminals to the supplier
L bro/whi below (click availability)
2 orr/whi
P red/blu
M whi/grn Later handsets have a sticker
9 grn/whi inside with model number
N whi/bro
1 blu/whi
Special Order

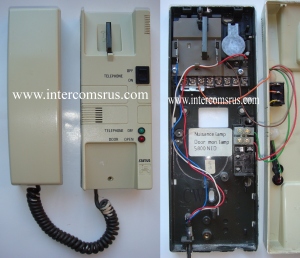

STATUS 5800/NID AC CALL (Council Systems)

STATUS 5800/NID  AC CALL (Council Systems) Terminals











Info
9 Grn/Whi & Whi/Grn There are so many versions
7 Blu/Red & Red/Blu of Status handsets best way
6 Whi/Blu & Whi/Orr to identify is to send picture
1 Blu/Whi and terminals to the supplier
2 Orr/Whi below (click availability)
F Grey/Whi
G Bro/Whi & Whi/Bro Later handsets have a sticker
inside with model number
Replaced by 1130/NID
DISCONTINUED

STATUS (SML 1130/NID) AC CALL (Council Systems)

STATUS (SML 1130/NID) AC CALL (Council Systems) Terminals











Info
9 Grn/Whi & Whi/Grn There are so many versions
7 Blu/Red & Red/Blu of Status handsets best way
6 Whi/Blu & Whi/Orr to identify is to send picture
1 Blu/Whi and terminals to the supplier
2 Orr/Whi below (click availability)
F Grey/Whi
G Bro/Whi & Whi/Bro Later handsets have a sticker
inside with model number
Special Order

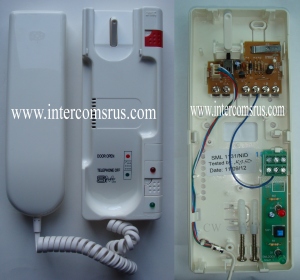

STATUS (SML 1131/NID) Electronic Call (Council Systems)

STATUS (SML 1131/NID) Electronic Call (Council Systems) Terminals











Info
9 Grn/Whi & Whi/Grn There are so many versions
CA Blu/Red & Red/Blu of Status handsets best way
6 Whi/Blu & Whi/Orr to identify is to send picture
1 Blu/Whi and terminals to the supplier
2 Orr/Whi below (click availability)
F Grey/Whi
G Bro/Whi & Whi/Bro Later handsets have a sticker
inside with model number
Special Order

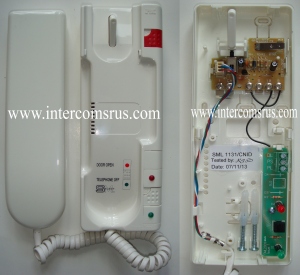

STATUS (SML 1131/CNID) Electronic Call (Council Systems)

STATUS (SML 1131/CNID) Electronic Call (Council Systems) Terminals











Info
1,C Blue / White There are so many versions
2 White / Blue of Status handsets best way
6 W/Orr & Orr/W to identify is to send picture
PS Green / White and terminals to the supplier
PL Brown / White below (click availability)
DL White / Brown
Later handsets have a sticker
inside with model number
Special Order

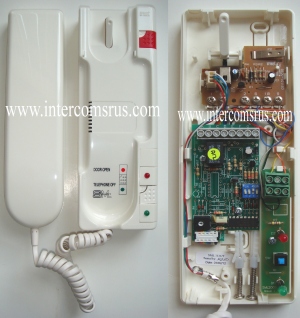

STATUS (SML 1131/T) Electronic Call (Council Systems)

STATUS (SML 1131/T) Electronic Call (Council Systems) Terminals











Info
A Grn/Whi & Whi/Grn There are so many versions
B Blu/Red & Red/Blu of Status handsets best way
C Whi/Gry to identify is to send picture
D Blu/Whi and terminals to the supplier
E Orr/Whi below (click availability)
F Gry/Whi
G Bro/Whi & Whi/Bro Later handsets have a sticker
H Whi/Blu & Whi/Orr inside with model number
Special Order

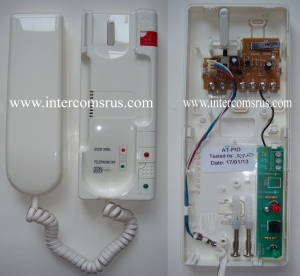

STATUS (SML AT-PID) Electronic Call (Council Systems)

STATUS (SML AT-PID) Electronic Call (Council Systems) Terminals











Info
1,CA Blu/Whi There are so many versions
2 Whi/Blu of Status handsets best way
6 Whi/Orr & Orr/Whi to identify is to send picture
9 Whi/Grn and terminals to the supplier
PS Grn/Whi below (click availability)
PL Bro/Whi
DL Whi/Bro Later handsets have a sticker
inside with model number
Special Order

STATUS MAT-2C Electronic Call (Council Systems)

STATUS MAT-2C Electronic Call (Council Systems) Terminals











Info
L1 Whi/Blu There are so many versions
L2 Blu/Whi of Status handsets best way
to identify is to send picture
Used On and terminals to the supplier
Status Gemini or below (click availability)
Aquarius Systems
Later handsets have a sticker
inside with model number
New Version Below
DISCONTINUED

STATUS MAT-2C LATER VERSION (Council Systems)

STATUS MAT-2C LATER VERSION (Council Systems) Terminals











Info
L1 Whi/Blu There are so many versions
L2 Blu/Whi of Status handsets best way
to identify is to send picture
Used On and terminals to the supplier
Status Gemini or below (click availability)
Aquarius Systems
Later handsets have a sticker
inside with model number
Special Order

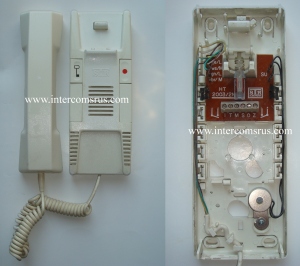

STR HT 2003/2W (5 Wire)

str HT2003w intercom system handset Terminals











Info
1 Lock Replaced by HT 3003/2W
M Speech Out (Mic) See Below
O Common
T Speech In (Speaker)
S Call
DISCONTINUED

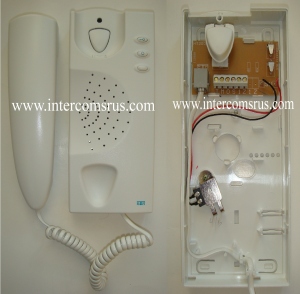

STR HT 3003/2W (5 Wire)

STR HT3003w Door Entry Handset Terminals











Info
1 Lock Replacement for 2003/2w
M Speech Out (Mic)
O Common
T Speech In (Speaker)
S Call
CHECK AVAILABILITY

STR HT 3002/3 (NH202 TVG System)

STR HT 3002/3  (NH202 TVG System) Terminals











Info
T Speech In (Speaker)
M Speech Out (Mic)
O Common
G1 Local Call (Flat)
G2 Not Used
G3 Panel Call
1 Lock
Z Aux
Special Order

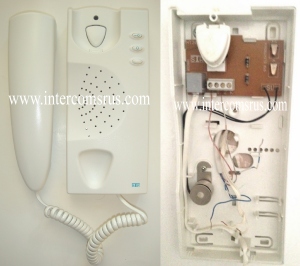

STR HT 3009/2 (2 WIRE ANALOGUE)

STR HT 3009/2 (2 WIRE ANALOGUE) Terminals











Info
1 Line 2 Wire System
11 Line Discontinued
Z Volt Free Switch
K Volt Free Switch
DISCONTINUED
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

TECHNIPHONE TN-5HZ

Techniphone TN5 HZ intercom system handset Terminals











Info
1 Speech Out (Mic) Universal Model
2 Speech In (Speaker)
3 Common
5 Lock NOT STOCKED USE
V Call A UNIVERSAL
LL Aux Button MODEL
COMPATIBLE UNIT

TECHNIPHONE TN-5HK

Techniphone TN5 HK intercom system handset Terminals











Info
1 Speech Out (Mic) Can Replace With
2 Speech In (Speaker) a Universal Model
3 Common
5 Lock TN5-HK    BITRON
V Call (Electronic) 1        2
LL Aux Button 2        1
3        6
Techniphone (Bilbao) 5        Op
Systems V        App
CHECK AVAILABILITY

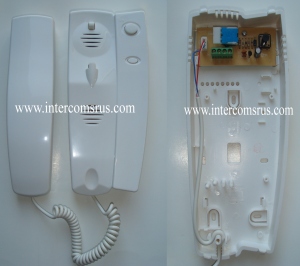

TYNETEC (Council Systems)

TYNETEC (Council Systems) Terminals











Info
Awaiting Details From Old Version Based on
Manufacturer BPT C-200

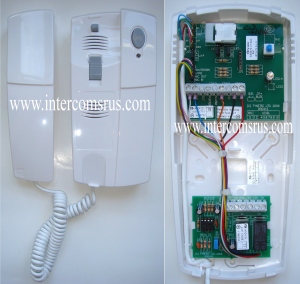

TYNETEC ZFT 290

TYNETEC ZFT 290 Terminals











Info
Top PCB Bottom PCB
C1 C1
C2 C2
EXT CALL
PORTER OV
ALARM 12V
CALL EN
DO
0V
12V
Special Order

TYNETEC ZFT 210

TYNETEC ZFT 210 Terminals











Info
10V Replaces ENTEL 300
0V connections as original
INTRUDER
IP2/SCLK
IP1/SDATA
C2
C1
STROBE -
ENABLE
Special Order
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

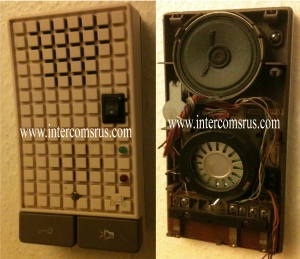

URMET Super Jolly

URMET Super Jolly Terminals











Info
AP Door Release Discontinued, replaced by
RZ Landing Call Urmet Duo 752/33 &
CA Panel Call additional Buzzer 9854/52
6 Common
5 Speaker
7 Mic
8 Mic
DISCONTINUED

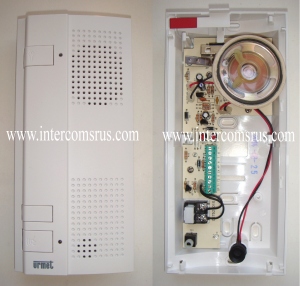

URMET DUO U-752 / 33

URMET DUO U-752 / 33 Terminals











Info
SP
T1
T2
5
CA
AP
6
7
8
+
Special Order

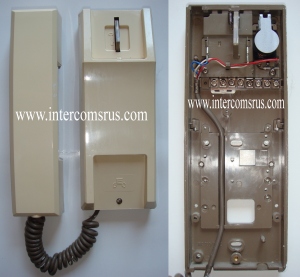

URMET 730 (AC Call)

Urmet 730 Door Entry Handset Terminals











Info
6,11,10 Common Known faults are
2 Speech Out (Mic) coil wire breaks at
8 solder joint
9 Lock
7 Call Discontinued, replaced by
1 Speech In (Speaker) Urmet 1130
DISCONTINUED

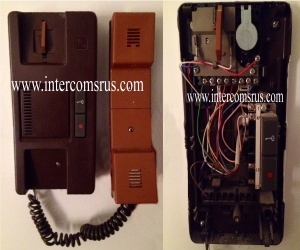

URMET UNKNOWN (AC Call)

URMET UNKNOWN (AC Call) Terminals











Info
6,11,10 Common Known faults are
2 Speech Out (Mic) coil wire breaks at
8 solder joint
9 Lock
7 Call Discontinued, replaced by
1 Speech In (Speaker) Urmet 1130
RELATED ITEMS SEE
STATUS (SML)
DISCONTINUED

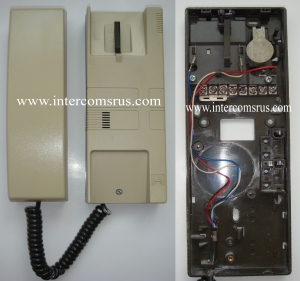

URMET 1030 (AC Call)

Urmet 1030 Door Entry Handset Terminals











Info
6,11,10 Common Known faults are
2 Speech Out (Mic) coil wire breaks at
8 solder joint
9 Lock
7 Call Discontinued, replaced by
1 Speech In (Speaker) Urmet 1130
RELATED ITEMS SEE
STATUS (SML)
DISCONTINUED

URMET 1130 (AC Call)

Urmet 1130 intercom system handset Terminals











Info
6,11,10 Common Known faults are
2 Speech Out (Mic) coil wire breaks at
8 solder joint
9 Lock
7 Call RELATED ITEMS SEE
1 Speech In (Speaker) STATUS (SML)
CHECK AVAILABILITY

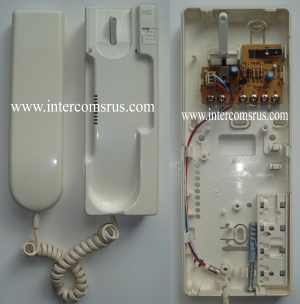

URMET 1131 (Electronic Call)

urmet 1131 electronic call intercom system handset Terminals











Info

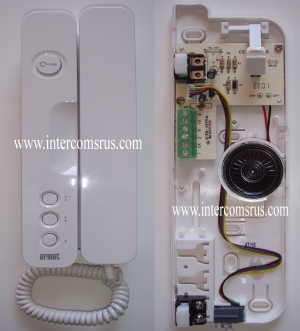

9 Lock Can replace with 1140/1
10 SIGNO connections
6 Common are the same
2 Speech Out (Mic)
CA/CA1 Call RELATED ITEMS SEE
1 Speech In (Speaker) STATUS (SML)
CHECK AVAILABILITY

URMET 1133 Atlantico (Electronic Call)

Urmet 1133 Atlantico intercom system handset Terminals











Info
9 Lock Replaced by
10 Urmet Signo 1140
6 Common
2 Speech Out (Mic)
CA/CA1 Call
1 Speech In (Speaker)
DISCONTINUED

URMET 1138/3 (DIGI-VOICE Systems)

URMET 1138/3 (DIGI-VOICE Systems) Terminals











Info
OV Ground Used on Digivoice
CA Call Systems
FA Outward Speech
FB Inward Speech Discontinued Use New
1138/3 Below
DISCONTINUED

URMET 1138/3 LATER VERSION (Digi-Voice Systems)

URMET 1138/3 LATER VERSION (Digi-Voice Systems) Terminals











Info
OV Ground Used on Digivoice
CA Call Systems
FA Outward Speech
FB Inward Speech
Special Order

URMET 1140/1 SIGNO (Electronic Call)

Urmet 1140 signo door entry intercom handset Terminals











Info
9 Lock Replaces 1131 & 1133
10 Electronic Call
6 Common
2 Speech Out (Mic)
CA/CA1 Call
1 Speech In (Speaker)
CHECK AVAILABILITY

URMET 1142 (2 wire Electronic Call)

URMET 1142 (2 wire Electronic Call) Terminals











Info
0 Replace with a
+ 1142/31 with built in
Usually wired to a Decoder
decoder board
DISCONTINUED
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |

VIDEX 524

VIDEX 524 Terminals











Info
4 Electronic Call Replace with 3101
6 AC Call or 3102
2 Speech In (Speaker)
1 Speech Out (Mic)
5 Lock
3 Common link
7 Common link
DISCONTINUED

VIDEX 525s

Videx 525s 2 Wire Door entry Handset Terminals











Info
1 Call, Speech, Lock Replaced by the 925s
3 Common
DISCONTINUED

VIDEX 924

Videx 924 door entry intercom system handset Terminals











Info
4 Electronic Call Hard wearing handset
6 AC Call buzzers can shake loose
2 Speech In (Speaker)
1 Speech Out (Mic) Replace with 3101 or
3 Common 3102
5 Lock
DISCONTINUED

VIDEX 924 M2L

Videx 924M2L intercom system handset Terminals











Info
4 Electronic Call As 924 But With Indicator
6 AC Call LED's And Switch
2 Speech In (Speaker)
1 Speech Out (Mic)
3 Common
5 Lock
D
-
+/~
Special Order

VIDEX 925s (2 Wire)

VIDEX 925s (2 Wire) Terminals











Info
1 Call, Lock, Speech Replaces the 525s can
3 Common also use a 3131 as a
replacement.
Special Order

VIDEX 926S

Videx 926S intercom system handset Terminals











Info
T Link to C Same as 924MSL but
2 Speech In (Speaker) the latter has an on/off
1 Speech Out (Mic) switch for the buzzer &
C Call LED
- Common
P Lock Replaced By 3121
8/9 Volt Free Button
Special Order

VIDEX SMART 1

VIDEX SMART 1 Terminals











Info
4 Electronic Call Discontinued
6 AC Buzzer Call can replace with 3101
2 Speech In (Speaker) or 3102 if a larger
1 Speech Out (Mic) handset is preferable
3 Common
5 Lock
Various Models
SMART 1(1 Button Handset)
SMART 2(2 Button Handset)
SMART P(P toTalk Handset)
CHECK AVAILABILITY

VIDEX 3011 SMART

Videx 3011 Smart intercom system handset Terminals











Info
4 Electronic Call Can replace with 3101
6 or 3102 if a larger
2 Speech In (Speaker) handset is preferable
1 Speech Out (Mic)
3 Common
5 Lock
CHECK AVAILABILITY

VIDEX 3021 (AC Call)

VIDEX 3021 (AC Call) Terminals











Info
4 Electronic Call Can replace with 3101
6 AC Buzzer Call or 3102 if a larger
2 Speech In (Speaker) handset is preferable
1 Speech Out (Mic)
3 Common
5 Lock
CHECK AVAILABILITY

VIDEX 3101

Videx 3101 replacement door entry intercom handset Terminals











Info
4 Electronic Call Videx 3101 Handset
6 AC Call Replaces 924
2 Speech In (Speaker)
1 Speech Out (Mic)
3 Common
5 Lock
8/9 Aux Button
CHECK AVAILABILITY

VIDEX 3102

Videx 3102 replacement intercom handset Terminals











Info
4 Electronic Call Same as 3101
6 AC Call but has on/off switch
2 Speech In (Speaker) for buzzer
1 Speech Out (Mic)
3 Common Replaces 924
5 Lock
8/9 Aux Button
CHECK AVAILABILITY

VIDEX 3111 (Electronic Call Only)

VIDEX 3111 (Electronic Call Only) Terminals











Info
4 Electronic Call Can use 3101 or
2 Speech In (Speaker) 3102 as both call
1 Speech Out (Mic) options are provided
3 Common
5 Lock
8/9 Aux Button
CHECK AVAILABILITY

VIDEX 3121

VIDEX 3121 Terminals











Info
1 Speech Out Used On Sentry
2 Speech In Systems
T Call Tone
P 0V Lock Trigger (Replaces 924 S)
- 0V
C Select Line
8 Aux Button
9 Aux Button
Special Order

VIDEX 3126

Videx 3126 Door Entry Handset Terminals











Info
1 Speech Out Used On Sentry
2 Speech In Systems
T Call Tone
p 0V Lock Trigger Replaces 940ST
- 0V
C Select Line
D Door LED SW +12
+12 +12 Mute Circuit
Special Order

VIDEX 3151

Videx 3151 Door Entry Handset Terminals











Info
1 To Panel True 2 Wire System
2 To Panel ESK-1, ESK-1S
3 AC In
4 AC In
5 N/A
6 N/A
7 Volt Free Switch
8 Volt Free Switch
Special Order

VIDEX 3171 DIGITAL

VIDEX 3171 DIGITAL Terminals











Info
L Data Line
- Common
LB Local Bell
AL
Sw
Sw
Set Dip switches for
handset address
(Binary)
Special Order

VIDEX 3172 DIGITAL

Videx 3172 Digital intercom system handset Terminals











Info
L Data Line
- Common
LB Local Bell
AL
Sw
Sw
Set Dip switches for
handset address
(Binary)
Special Order

VIDEX 3176

Videx 3176 Door Entry Handset Terminals











Info
L Bus Line Used on 2 wire bus
L- Bus Line systems VX2202
LD- Door Open LED psu
LD+ Door Open LED psu REPLACES OLD 942
LB Local Bell Input
AL Alarm Input
Special Order
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z |
